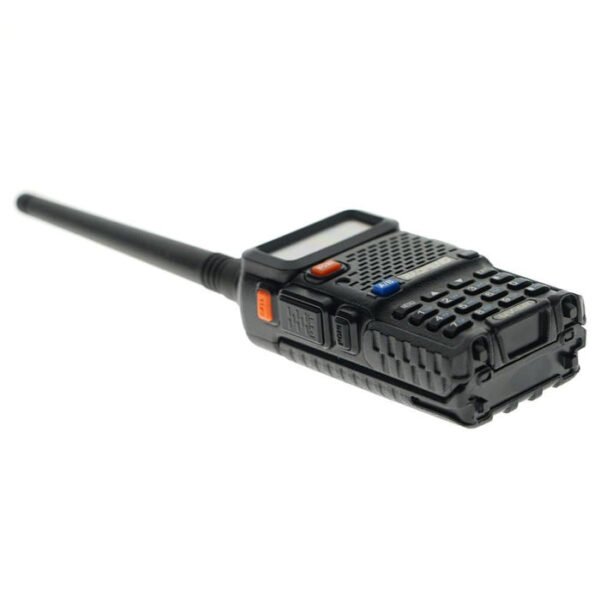

BAOFENG 8W UV-5R Dual-Frequency Portable Walkie Talkies with 5-8 KM Communication Range

Model : UV-5R
Frequency Range : UHF (400-470MHz)
VHF (136-174MHz)
Communication Range : 5-8 KM
Voltage : 7.4V
Channel Capacity : 128
Antenna Type : External
Product Size : 58x110x32MM
Output Powe r : 5W
Audio Power : 1000mW
Battery Capacity : 1800mAh
Weight : 130GM
Warranty : 1 Year for Device
1 Month for Battery
1 Month for Charger
Additional Features : FM Radio
LCD Display
LED Flashlight
Voice Prompt

The UV-5R is an economical Dual Band UHF/VHF Ham Radio, compact with 128 channels and 12 hr. battery life, great for mobile operations.

For UV-5R related certifications and reports, please click to download!

UV-5R-FCC-01

UV-5R-FCC-02

UV-5R-FCC-03

UV-5R_01-EN301489

UV-5R _02-LVD-Report

UV-5R_03-EN300

UV-5R_04-EUT Photos

UV-5R-05-Certificate RED

UV-5R-06-SAR-Report

<!–amp.product-description.start–

The Baofeng UV-5R is an economical Dual Band UHF/VHF Amateur Radio that’s extremely compact. With 128 channel capacity and up to 12 hours of battery life, the UV-5R is a good choice for ham radio operators who need mobility at low cost.

The UV-5R features 128 programmable channels with priority channel scanning, dual watch and 1750 Hz call tone. Other features include UHF/VHF Dual Standby, 65-108Mhz FM radio, Ani code, DTMF code, Dual display switch and CTCSS manual input. The UV-5R also features built-in VOX (Voice Operated Transmit) for hands-free operation and a high illumination flashlight.

The Baofeng UV 5R has up to 4W of power and is powered by 1800mAh Li-Ion battery pack for up to 12 hours (approx.) of operation. A battery save feature helps conserve power until it is needed.

• 128 Channels
• Dual Band
• 136-174MHz VHF Frequencies
• 400-520MHz UHF Frequencies
• Repeater Capable
• 4W/1W Transmit Power
• Li-Ion Battery Pack
• Rechargeable Battery Included
• Battery Charger
• FM Radio
• Emergency Alarm
• Channel Scan
• Skip Channel
• Dual Watch
• Busy Channel Lockout
• Call Tone
• CTCSS Manual Input
• Backlit LCD Display
• Power-On Display Message
• Battery Meter
• Low Battery Alert
• Power Saver
• Timeout Timer
• VOX
• Keypad Lock
• Audible Button Beeps
• Voice Prompts
• Drop-In Charge Capable
• Audio Accessory Connector
• PC Programmable (Requires Optional Cable)
• Flashlight
• DTMF Code
• Reset

–amp.product-description.end–>
